Arweave <> Media Network

Add your Arweave gateway to Media Network

To scale up your Arweave gateway to million of users and make it available through a community-powered CDN, you can register your Arweave gateway as a resource on Media Network using the Media App front-end in 2 easy steps.

We're assuming you've already have your SPL wallet loaded with some SOL to pay for transactions fees, and at least the equivalent of 25 MEDIA (LP Tokens from Raydium's MEDIA-USDC pool count towards this) in order to use the CDN service.

Step 1 - Find out Arweave's gateway port and IP address:

In this step you'll have to find out the details about your Arweave gateway to be able to add it later on to Media Network. You can check what is running in each port by exectuing the following command:

netstat -ntpl
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 127.0.0.1:5001 0.0.0.0:* LISTEN 14732/ipfs
tcp 0 0 0.0.0.0:8080 0.0.0.0:* LISTEN 14732/ipfs
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 1014/sshd
tcp 0 0 0.0.0.0:3000 0.0.0.0:* LISTEN 19072/docker-proxy
tcp 0 0 0.0.0.0:5432 0.0.0.0:* LISTEN 18884/docker-proxy
tcp 0 0 0.0.0.0:4001 0.0.0.0:* LISTEN 14732/ipfs
tcp6 0 0 :::22 :::* LISTEN 1014/sshd
tcp6 0 0 :::3000 :::* LISTEN 19079/docker-proxy
tcp6 0 0 :::5432 :::* LISTEN 18892/docker-proxy
tcp6 0 0 :::4001 :::* LISTEN 14732/ipfs

In this case we can check that the docker container running the gateway is running on port 3000 under PID 19079

Now let's check the external IP address of your device:

ifconfig
eno1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 141.120.114.66 netmask 255.255.255.0 broadcast 141.120.114.66
inet6 fe80::2eea:7fff:fef0:f2fe prefixlen 64 scopeid 0x20<link>
ether 2c:ea:7f:f0:f2:fe txqueuelen 1000 (Ethernet)
RX packets 9245489 bytes 1915123059 (1.7 GiB)
RX errors 0 dropped 34 overruns 0 frame 0
TX packets 4943558 bytes 970078005 (925.1 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
device interrupt 49

In this case, we can check that the external IP address is 141.120.114.66 using the eno1 interface.

This means your Arweave gateway is running at the following URL, which is what you'll need to add as a CDN resource:

http://141.120.114.66:3000

Step 2 - Add your resource to the network

Access the Media App and connect your SPL wallet.

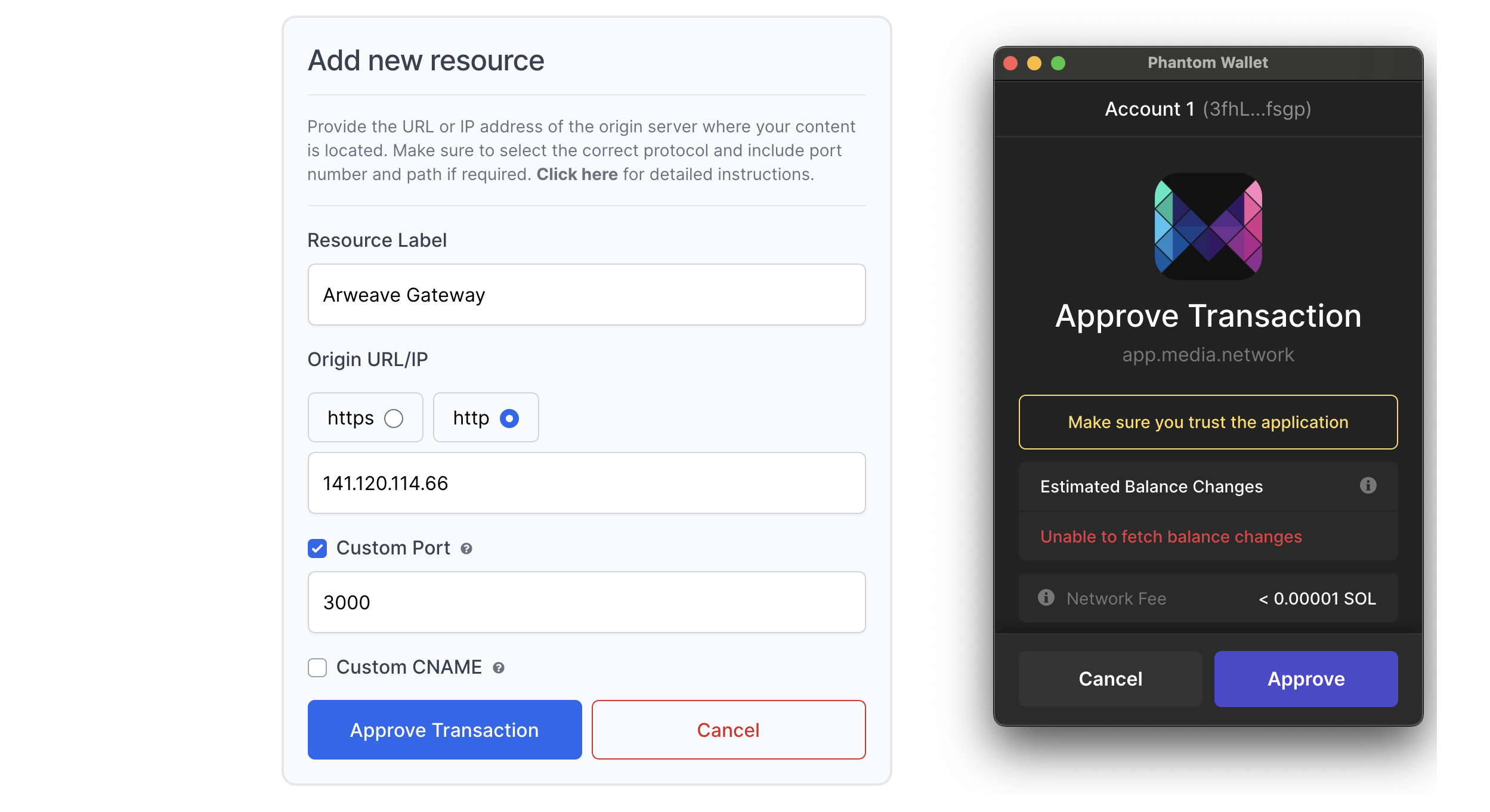

Add your resource, specifying port number & and approve the transaction:

Finalizing the process

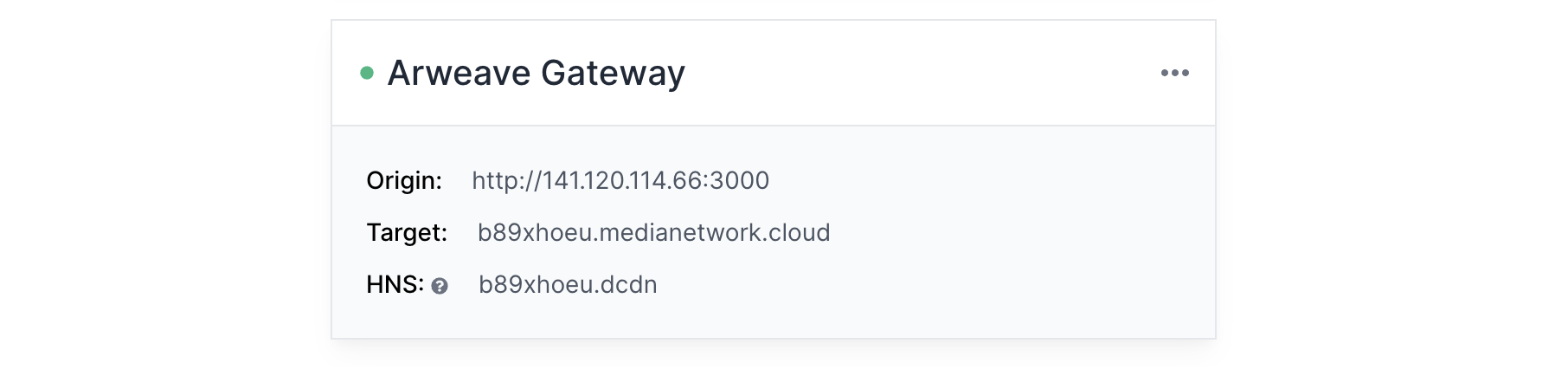

If everything went smoothly and the transaction was approved and confirmed, you'll see your resource ID and which origin it points to. Congrats! Your local Arweave node is now powered and scaled by Media Network. End-users accessing the new link will load the resources from Media Edges around the world instead of your original HTTP gateway.

Testing

You can test if the server and the GraphQL queries are working through Media Network's CDN by navigating to:

https://s3u3azlnqt.medianet.work/graphql

This webpage should look similar to.

https://arweave.dev/graphql

You can now access any content hosted on the Arweave network, through your own gateway and delivered by Media Network:

https://s3u3azlnqt.medianet.work/

Lets try to fetch the file we've just deployed mytextfile.txt using Arweave's txID:

mytextfile.txt

Or any other content:

US Constitution
